ATOMIC AIRFORCE LS1/2/6 INTAKE MANIFOLD RED

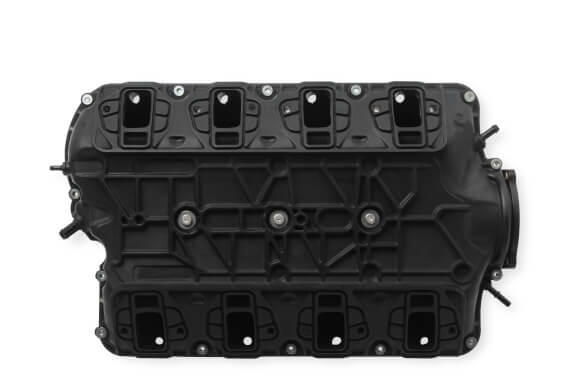

Performance, polymer intake manifold for GM LS1, LS2 and LS6 engines.
Note: Will interfere with stock LS1/LS6 water pump. Requires modification to top water pump bolt or use of LS2 water pump. See page 8 of the instructions.
The MSD Atomic AirForce intake manifold delivers improved airflow and distribution to improve the performance of stock and modified engines. The unique bell-mouthed runner entrances maximize airflow and minimize shrouding - all while optimizing the available plenum volume for an unobstructed flow path over opposing runners. The polymer molded 2-piece design allows for easy access to the runners for porting. Atomic AirForce accepts an OEM or 103mm throttle body as well as stock or aftermarket fuel rails*. The intake bolts on and is supplied with new gaskets and hardware for a direct bolt-on package.
Features:
- CARB Approved, 50 State Legal EO# D-722-3
- Designed using Computational Fluid Dynamic Modeling to create optimal plenum volume and efficient air flow paths
- The two-piece manifold design provide convenient access to the runners for porting
- Direct flow path runner design promotes maximum airflow
- 103mm Throttle bore allows the use of large throttle bodies for greater air flow
- Polymer material resists heat soak and minimizes weight
- Allows for the use of stock, and aftermarket fuel rails
- Available with Red, Black or Silver logos
Brand | Atomic |
---|---|
C.A.R.B. EO # | D-722-3 |
Color | Red |
Construction | Polymer |
Emission Code | 1 |
Engine | GM LS1/LS2/LS6 |
Finish | Black |
Fuel System Type | EFI |
Injector Style Provision | LS3/L92 EV6 USCAR |
Plenum Volume with Runners | 11.59L (707.27 c.i.) |
Plenum Volume without Runners | 215.6mm (8.49in) |
Product Type | Intake Manifold |
Throttle Bore | 103mm |
Warranty | Limited 90 Day |
Part Number | 2702 |
This part is legal for sale and use on Emissions Controlled Vehicles when used in accordance with the manufacturers application guide because it has a California Air Resources Board (CARB) Executive Order (EO) number.
The following vehicles are considered Emissions Controlled Vehicles:
- 1966 and newer U.S. manufactured California Certified vehicles
- 1968 and newer U.S. manufactured Federally Certified vehicles
- 1968 and newer Foreign manufactured vehicle
C.A.R.B. EO #D-722-3
