Holley 36lb High Impedance Fuel Injectors Bosch EV1 Connector

$449.99 $401.95

Brand Holley
SKU: 522-368


Bosch/EV1 Style, High Impedance, Maximum Horsepower: 575

Holley EFI Fuel Injectors feature a precision lapped disc valve, high-quality brass windings, and high-temp O-rings. These injectors provide excellent linearity with no discernible "bounce" at low pulse widths as commonly found in other injectors. They are available from 19 to 160 lb/hr flow rates to accommodate a variety of vehicles from mild street cars to high horsepower race applications. Holley EFI Fuel Injectors provide precision fuel delivery you can depend on.


  • Bosch/EV1 style performance injectors - Set of 8
  • High impedance (12.2 Ohms) for use with saturated drivers
  • Rated injector flow: 36 lb/hr @ 43 PSI
  • Supports up to 575 horsepower
  • Tri-cone spray pattern

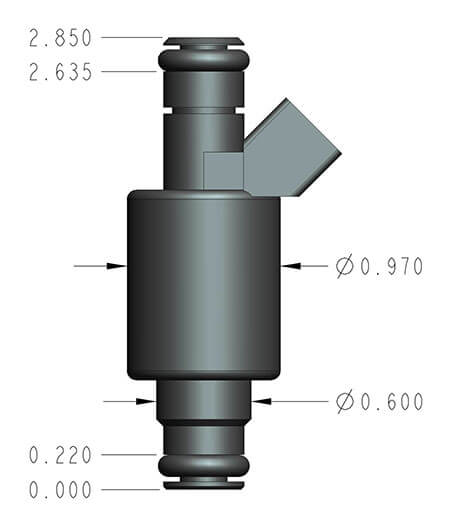

Body Diameter 0.970
Body Length 2.85"
Body Style EV1
Brand Holley EFI
Connector Series EV1 - Jetronic - (Bosch Style)
Emission Code 4
Impedance High (12.2 Ohms)
O-Ring to O-Ring 2.415"
Product Type EV1 Fuel Injector
Rated Injector Flow 36 lb/hr
Part Number 522-368

This part is legal for sale or use on Racing Use Only Vehicles

The following vehicles are considered Racing Use Only Vehicles:

  • Racing Use Only Vehicles are vehicles that are used exclusively for competition that are not registered and that may never be used on the street

WARNING: It is against the law to install this part on an Emissions Controlled Vehicle
